Logging

return to Blockly Reference

Introduction

This section explains only the blocks that have been added to the standard blocks by openHAB

{::options toc_levels="2..4"/}

• TOC {:toc}

{: #blockly-logging-overview}

Logging and Output

These blocks enable arbitrary content to be published to the openHAB log.

More about that topic can be viewed at Logging

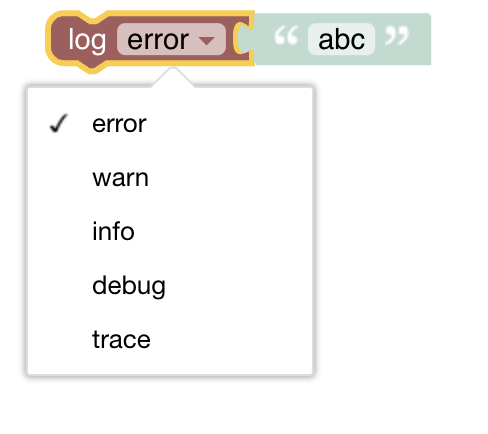

Log Statement

Function: Sends an entry to the openHAB log file with a defined severity level.

• A severity level can be provided via the dropdown list for the log statement

  • error
  • warn
  • info
  • debug
  • trace

Since 3.3: The block attached to the log-block is not restricted to a string type block anymore

Print Statement

Function: creates a print statement with the given text in the rule that logs to stdout
