readme.md
| id | label | title | type | description | since | logo | install |
|---|---|---|---|---|---|---|---|
| kostalinverter | Kostal Inverter | Kostal Inverter - Bindings | binding | Scrapes the web interface of the inverter for the metrics of the supported channels below. | 2x | images/addons/kostalinverter.png | auto |
{% include base.html %}
Kostal Inverter Binding
Scrapes the web interface of the inverter for the metrics of the supported channels below.
Supported Things

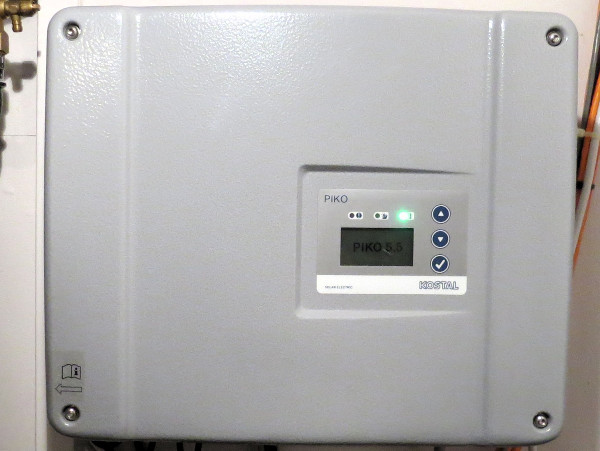

Tested with Kostal Inverter Pico but might work with other inverters from kostal too.
Discovery
None
Channels
- acPower
- totalEnergy
- dayEnergy
- status
Thing Configuration
demo.things
Thing kostalinverter:kostalinverter:inverter [ url="http://192.168.0.128" ]
If the thing goes online then the connection to the web interface is successful. In case it is offline you should see an error message.
Items
demo.items:
Number SolarPower "Solar power [%.2f Watt]" <energy> (gGF) { channel="kostalinverter:kostalinverter:inverter:acPower" }
Number SolarEnergyDay "Solar day energy[%.2f kwh]" <energy> (gGF) { channel="kostalinverter:kostalinverter:inverter:dayEnergy" }
Number SolarTotalEnergy "Solar total energy[%.2f kwh]" <energy> (gGF) { channel="kostalinverter:kostalinverter:inverter:totalEnergy" }
String SolarStatus "Solar status [%s]" <energy> (gGF) { channel="kostalinverter:kostalinverter:inverter:status" }
